Single Line DC Filter Range – Rectangular

Single line DC power line filters packaged in a rectangular case designed for bulkhead mounting. They are suitable for voltages up to 250VDC. The filters offer 100dB attenuation against electromagnetic noise present on the power lines from a frequency range of 10kHz to 10GHz.

Insertion Loss Performance

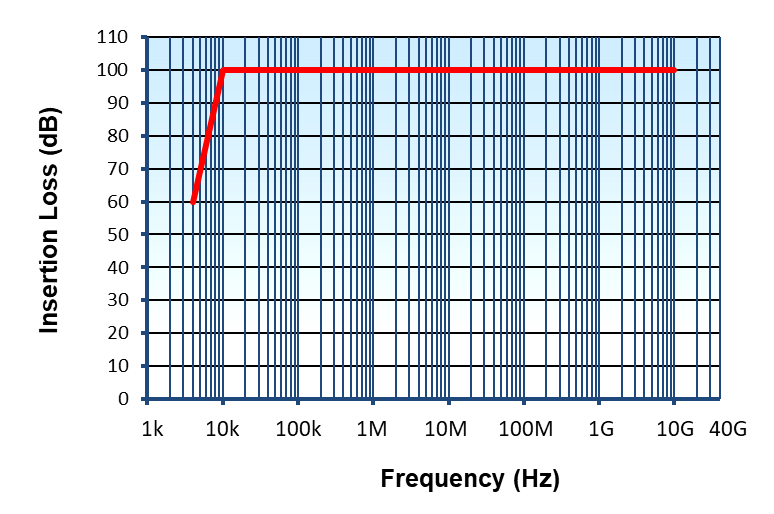

Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
Performance curve meets 100dB from 10kHz to 10GHz.

Rated Current
(A)
Part NumberVolt Drop
(mV)
Length
(mm)
Width
(mm)
Height
(mm)
Approx Weight
(kg)
6DS2639010006001009012
10DS2639110006001009012
32DS23596100070013011020
63DS23597100085013011025
100DS235981000100016013035
200DS235991000120020015060

Rated Voltage

  • 250VDC

Alternative Voltage

  • Also suitable for 100VAC 50 Hz
  • Alternative surge arrestors may be required.

Rated Current

  • 6A to 200A (each individual line, see table)

Current Overload

  • 10 x maximum rated current for 1 sec.
  • 1.5 x max rated current for 10 minutes.

Discharge time

  • 30 seconds to below 34V (filter incorporates discharge resistors)

Temperature Rise

  • 25°C case rise on full load

Storage Temperature Range

  • -45°C to +85°C Storage
  • -45°C to +50°C Working

MTBF

  • >0.8 million hours (calculated using Mil Hdbk 217F)

Surge Suppression (optional)

  • 330VDC at 130J (8/20μs)
  • All filters can be supplied with an integral metal-oxide varistor, fitted between the input terminal and earth (case).
  • Military power supplies
  • IT & Telecomms, base stations, server supplies & racks
  • Screened rooms & EMC test chambers
  • Supports compliance to MIL-STD-461 & DEF STAN 59-411
  • All MPE installation filters are tested using the test methods defined within the following standards and meet or exceed the relevant performance and/or safety criteria defined within these standards:
    • Mil-F-15733
    • Mil-Std-220C
    • CISPR17:2011/BS EN 55017:2011
    • UL1283
    • LVD 2014/35/EU
    • DEF-STAN 59-411/MIL-STD-461
    • RoHS (2011/65/EU) & LVD (2014/35/EU)
    • UKCA & CE
    DS XXXXX / X / X
    • Filter Part Number
    • Suffix C for standard cable entry
    • For other cable entries, see Installation Details page
    • Add suffix V for transient suppressed filter
    e.g. DS26390CV
