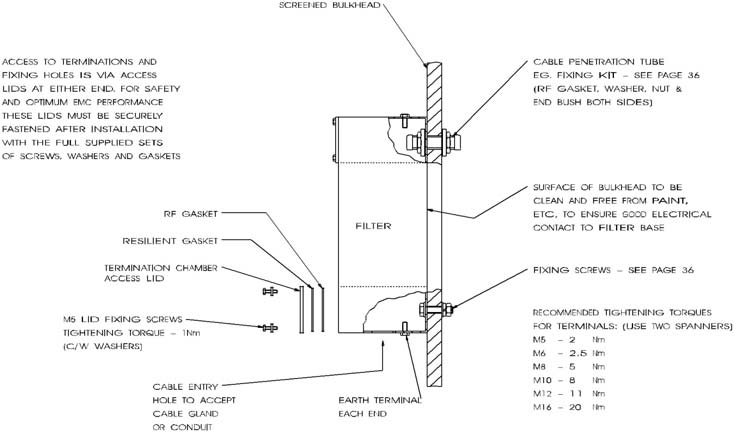

Installation Details

Typical installation details are shown below.

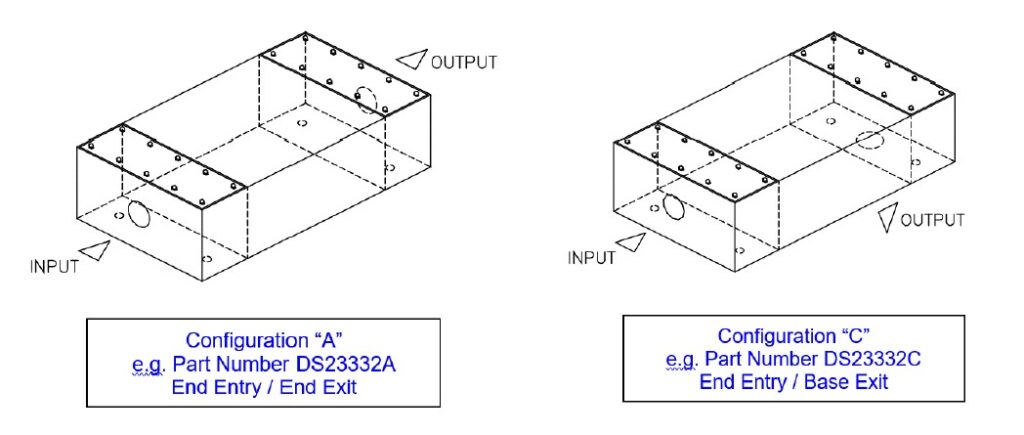

Cable Entry Options

The following standard cable entry hole positions are available on all rectangular filters with terminal compartments. The required cable entry is simply specified by adding the appropriate suffix to the filter part number as shown below. Other cable entries can be provided to special order.

Suffix “C” denotes the standard version and this type will be supplied in the event of no cable entry suffix being specified.

Note: Transient suppressors, where fitted, are always on the input end of the filter.

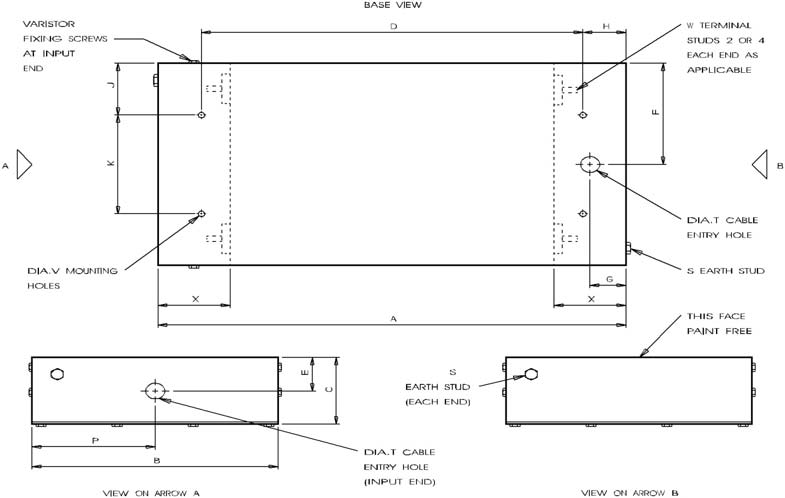

Outline Dimensions

Dimensions are tabulated below for rectangular style filters. They apply to the standard cable entry style. (i.e. suffix C on filter part number)

All dimensions are given in mm.

Normal configuration is for the neutral terminal to be adjacent to the earth terminal at the supply end of the filter.

Case Size	Table of Dimensions (mm)
	A	B	C	D	E	F	G	H	J	K	P	S	T	V	W	X
a	310	175	90	212	45	88	35	49	24	127	88	M6	20	9	M5	65
b	310	350	90	212	45	175	35	49	67	216	175	M6	25	9	M5	65
c	425	175	90	327	45	88	45	49	24	127	88	M6	20	9	M5	85
d	425	350	90	327	45	175	45	49	67	216	175	M6	25	9	M5	85
e	550	205	95	487	48	103	45	31	61	83	103	M10	32	9	M8	85
f	550	205	105	487	48	103	45	31	61	83	103	M10	32	9	M8	85
g	550	410	95	487	48	205	45	31	62	286	205	M10	32	9	M8	85
h	550	410	110	487	48	205	45	31	62	286	205	M10	32	9	M8	110
i	640	205	120	537	48	103	65	52	61	83	103	M10	32	9	M8	110
j	660	410	135	537	68	205	75	62	62	286	205	M10	32	9	M8	120
k	725	175	90	627	45	88	45	49	24	127	88	M6	20	9	M5	85
l	725	205	105	621	48	103	55	52	61	83	103	M10	32	9	M8	110
m	725	410	110	663	48	205	55	31	62	286	205	M10	32	9	M8	110
n	760	205	120	656	48	103	55	52	61	83	103	M10	32	9	M8	110
p	780	410	135	656	68	205	60	62	62	286	205	M10	32	9	M8	120
q	820	350	120	710	60	175	55	55	110	130	175	M10	32	13	M8	110
r	970	350	120	860	60	175	55	55	110	130	175	M10	32	13	M8	110
s	1206	350	150	1130	75	175	60	38	110	130	175	M10	32	13	M8	120
t	1206	573	162	1130	81	286	75	38	110	353	286	M12	51	13	M12	135
u	660	475	135	537	68	238	60	62	110	255	238	M12	51	13	M12	120
v	660	575	150	537	75	288	60	62	110	355	288	M12	51	13	M12	120
w	590	410	95	527	48	205	45	31	62	286	205	M10	32	9	M8	85
x	820	475	150	680	75	238	70	70	110	255	238	M12	51	13	M12	140
y	820	575	150	680	75	288	70	70	110	355	288	M12	51	13	M12	140
z	1750	650	180	1260	90	325	75	245	150	350	325	M20	63	17	M20	300
aa	725	350	95	635	47	175	45	45	85	180	175	M6	20	9	M5	85
bb	725	350	95	635	47	175	45	45	85	180	175	M6	20	9	M5	85
cc	820	700	120	710	60	350	55	55	175	350	350	M10	32	13	M8	110
dd	970	700	150	860	75	350	55	55	175	350	350	M10	32	13	M8	110
ee	1206	700	162	1086	81	350	60	60	175	350	350	M10	32	17	M8	120
ff	1206	930	172	1070	85	465	68	68	230	470	465	M12	51	17	M12	135
gg	1750	1000	180	1260	90	500	75	245	250	500	500	M20	75	17	M20	300
hh	600	100	90	540	45	50	30	30	20	60	50	M6	20	9	M5	65
ii	700	130	110	640	55	65	30	30	30	70	65	M10	25	13	M8	65
jj	850	130	110	770	55	65	40	40	30	70	65	M10	25	13	M8	85
kk	1000	160	130	870	65	80	65	65	30	100	80	M10	32	13	M8	130
ll	1200	200	150	1070	75	100	65	65	40	120	100	M12	51	17	M12	130
mm	1250	475	150	760	75	238	75	245	110	255	238	M20	63	17	M20	300
nn	1250	575	150	760	75	288	75	245	110	355	288	M20	75	17	M20	300
pp	750	500	160	620	80	250	60	65	130	240	250	M12	40	13	M12	120
qq	1050	525	185	660	93	263	60	195	130	265	263	M20	51	13	M20	250
rr	750	700	170	620	85	350	60	65	150	400	350	M12	51	13	M12	120
ss	1700	700	170	1210	85	350	75	245	150	400	350	M20	75	17	M20	300
