Clean Power Filter Range
The Clean Power range of filters for electrical connection to SP&N and TP&N mains distribution systems, are designed for use in industrial applications or EMC installations where very high frequency performance is not required. The filters are housed in a rugged stainless steel rectangular case, designed for mounting on a bulkhead.

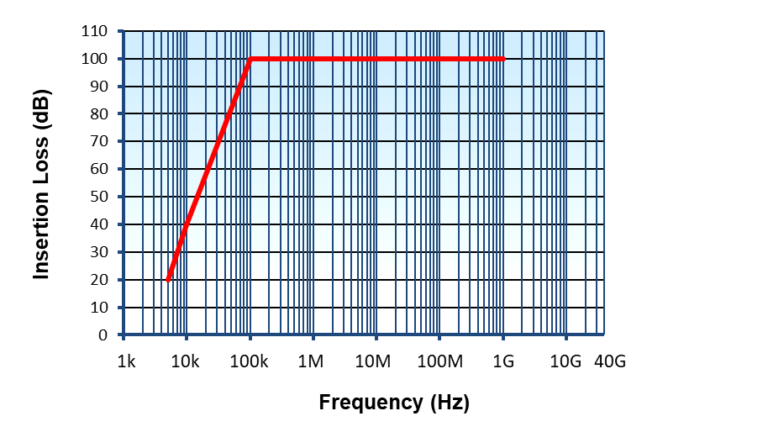

Insertion Loss Performance
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
Performance curve meets 100dB from 100kHz to 1GHz.
Typical Applications
- ndustrial power and equipment supplies
- Screened rooms, enclosures, cabinets and server supplies
- Supports compliance to MIL-STD-461 & DEF STAN 59-411
| Rated Current (A) | Part Number | DC Resistance (mΩ) | Earth Leakage (A) | Length (mm) | Width (A) | Height (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| 16A | DS41016 | 20 | 0.2 | 250 | 110 | 55 | 3 |
| 32A | DS41032 | 6 | 0.3 | 350 | 120 | 65 | 5 |
| 63A | DS41063 | 2 | 0.4 | 400 | 140 | 80 | 8 |
| 100A | DS41100 | 0.8 | 0.6 | 500 | 200 | 95 | 18 |
| 160A | DS41160 | 0.5 | 0.8 | 600 | 210 | 110 | 25 |
| Rated Current (A) | Part Number | DC Resistance (mΩ) | Earth Leakage (A) | Length (mm) | Width (A) | Height (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| 16A | DS43016 | 12 | 0.3 | 250 | 110 | 55 | 4 |
| 32A | DS43032 | 5 | 0.5 | 350 | 120 | 65 | 8 |
| 63A | DS43063 | 1.5 | 0.7 | 400 | 140 | 80 | 12 |
| 100A | DS43100 | 0.5 | 1 | 500 | 200 | 95 | 20 |
| 160A | DS43160 | 0.2 | 1.3 | 600 | 210 | 110 | 30 |
Rated Voltage SP&N
- 250VAC 50/60Hz
Rated Voltage TP&N
- 440/250VAC 50/60Hz
Alternative SP&N
- Also suitable for 520/300VAC 50/60Hz two phase
- Also suitable for 2 line d.c. supplies up to 400VDC
- Alternative surge arrestors may be required.
Alternative TP&N
- Also suitable for 480/277VAC 50/60Hz
- Also suitable for 520/300VAC 50/60Hz
- Alternative surge arrestors may be required
Rated Current
- 6A to 160A (each individual line, see table)
Current Overload
- 10 x maximum rated current for 1 sec.
- 1.5 x max rated current for 15 minutes.
Discharge Time
- Max. 30 seconds to below 34V (filter incorporates discharge resistors)
Temperature Rise
- 20°C case rise on full load
Storage Temperature Range
- -45°C to +85°C Storage
- -45°C to +50°C Working
MTBF
- >0.2 million hours (calculated using Mil Hdbk 217F)
Surge Suppression (optional)
- 320VAC at 255J (8/20μs)
- All filters can be supplied with an integral metal-oxide varistor, fitted between the input terminal and earth (case).
All MPE installation filters are tested using the test methods defined within the following standards and meet or exceed the relevant performance and/or safety criteria defined within these standards:
- Mil-F-15733
- Mil-Std-220C
- CISPR17:2011/BS EN 55017:2011
- UL1283
- LVD 2014/35/EU
- DEF-STAN 59-411/MIL-STD-461
- RoHS (2011/65/EU) & LVD (2014/35/EU)
- UKCA & CE
Ordering Code
DS XXXXX / X / X (e.g. DS41032CV)
- Filter Part Number
- Suffix C for standard cable entry (for other cable entries, see Installation Details page)
- Add suffix V for transient suppressed filter
