MPE

HEMP Standard Performance Range Up to 3600A

All lines are individually filtered, featuring inductive input to provide both the required transient handling performance and good continuous wave EMC performance even on supplies with low source impedance. The filters are fitted with high-energy transient suppressors and are housed in a compact, RF sealed enclosure in compliance with MIL-STD-188-125-1&-2 and DEF STAN 59-188-1&-2.

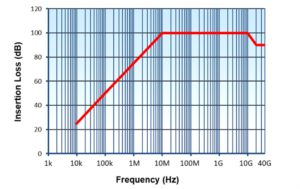

Insertion Loss Performance

Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
Standard Performance filters meet 100dB attenuation from 30MHz to 18GHz then 90dB attenuation up to 40GHz.

Typical Applications

  • Fixed ground-based C4I military facilities
  • Transportable ground-based C4I military systems
  • MIL-STD-188-125-1&-2
  • DEF STAN 59-188-1&-2 applications
Rated Current
(A)		Part NumbersDC Resistance
(mΩ)		Earth Leakage
(A)		Residual Current [2.5kA]
(A)		Length
(mm)		Width
(mm)		Height
(mm)		Terminal SizeApprox. Weight
(kg)
800DS337370.1147.6175041032050 x 8300
1200DS337380.05147.6175041032080 x 10300
24002 x DS33738 single line filters connected in parallel – see installation details on page 14
36003 x DS33738 single line filters connected in parallel – see installation details on page 15
Rated Current
(A)		Part NumbersDC Resistance
(mΩ)		Earth Leakage*
(A)		Residual Current [2.5kA]
(A)		Length
(mm)		Width
(mm)		Height
(mm)		Terminal SizeApprox. Weight
(kg)
16DS33331121.52.4420200120M510
32DS3333261.53.4500250120M815
63DS3333351.54.1620320170M830
100DS33334251.3740350230M840
200DS333350.552.6860450250M1270
250DS339040.568.41220450210M1690
400DS333360.289.21600480250M20120
Rated Current
(A)		Part NumbersDC Resistance
(mΩ)		Earth Leakage*
(A)		Residual Current [2.5kA]
(A)		Length
(mm)		Width
(mm)		Height
(mm)		Terminal SizeApprox. Weight
(kg)
16DS33341121.52.4420400120M520
32DS3334261.53.4500500120M830
63DS3334351.54.1620640170M855
100DS33344251.3740700230M880
200DS333450.552.6860900250M12130
250DS339050.568.41220900210M16170
400DS333460.289.21600960250M20225

Rated Voltage (All Filters)

  • 250VAC 50/60Hz or 300VDC each line to case

Rated Voltage (4-Line TP&N Filters)

  • 440/250VAC 50/60Hz

Rated Voltage (Note:)

  • 277VAC 50/60Hz and 480/277VAC 50/60Hz voltage ratings also available – see ordering codes

Test Voltage

  • 2250VDC each line to case (prior to fitting transient suppressors)

Rated Current

  • 16A to 1200A (each individual line, see range available)

Current Overload

  • 10 x maximum rated current for 1 sec
  • 1.5 x max rated current for 10 minutes

Bleeder/Discharge Resistors

  • Fitted internally from each line to case

Discharge time

  • 30 seconds to below 34V

Max. Temperature Rise on Full Load

  • 25°C

Temperature Range (Operating)

  • -40°C to +50°C

Temperature Range (Operating)

  • -40°C to +85°C

Peak Surge Current

  • 70kA (8/20s)

MTBF

  • >0.1 million hours (calculated using Mil Hdbk 217F)
Frequency10kHz100kHz1MHz10MHz100MHz1GHz
Minimum Shielding Effectiveness to meet
MIL-STD-188-125		20dB40dB60dB80dB80dB80dB
Typical Filter Shielding Effectiveness30dB50dB70dB100dB100dB100dB

All MPE installation filters are tested using the test methods defined within the following standards and meet or exceed the relevant performance and/or safety criteria defined within these standards:

  • Mil-F-15733
  • Mil-Std-220C
  • CISPR17:2011/BS EN 55017:2011
  • UL1283
  • LVD 2014/35/EU
  • DEF-STAN 59-411/MIL-STD-461
  • RoHS (2011/65/EU) & LVD (2014/35/EU)
  • USACE 13.27.54.01
  • UFGS 13.49.20.01
  • UKCA & CE
  • MIL-STD-188-125-1&-2
  • DEF STAN 59-188-1&-2

Ordering Code

DS XXXXX / X / X (e.g. DS33330#/480)

  • Filter Part Number
  • Suffix C for standard cable entry (for other cable entries, see Installation Details page)
  • Add suffix “/480” if 480/277VAC (SP+N) or (TP+N) voltage ratings are required
