DC Equipment Filters
Description
A range of high performance dc power input filters for filtering incoming power to sensitive or noisy equipment.
| Rated Voltage | 100V dc |
| Test Voltage | 200V dc |
| Rated Current, IR | As tabulated |

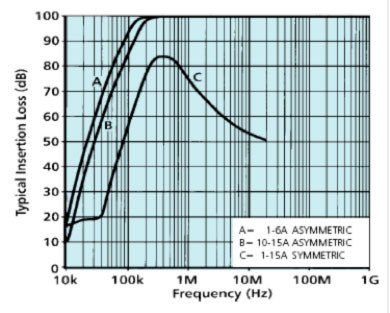

| Insertion Loss | See graph |
| Maximum Volt Drop per line at full load dc current | 250mV |
| Maximum Full Load Heat Dissipation | As tabulated |
| Maximum Temperature Rise at Full Load | 25ºC |
| Ambient Temperature Range | -25ºC to +85ºC |
| Climatic Category | 25/85/21 |
| Part Number | Current Rating IR (A) @50ºC* | Maximum Heat Dissipation (W) | Major Dimensions (mm) | Weight (g) | ||
|---|---|---|---|---|---|---|
| Length A | Width B | Depth C | ||||
| DS26780 | 1 | 0.15 | 51 | 51 | 32 | 170 |
| DS26781 | 3 | 1.5 | 51 | 51 | 32 | 170 |
| DS26782 | 6 | 3.5 | 64 | 56 | 38 | 260 |
| DS26783 | 10 | 2.0 | 88 | 60 | 38 | 440 |
| DS26784 | 15 | 4.5 | 88 | 60 | 38 | 440 |
*Current derating between 50ºC and 85ºCFor temperature, θ Iθ = IR

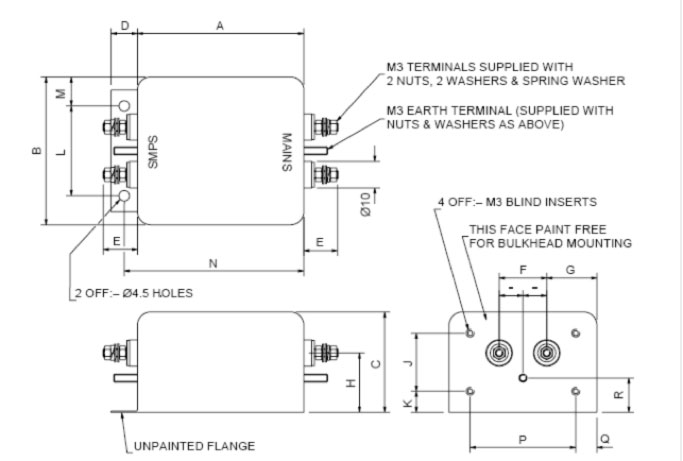

| Part Number | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | |
| DS26780, DS26781 | 51 | 51 | 32 | – | 13 | 16 | 17.5 | 21.5 | 18 | 7 | – | – | – | 37 | 7 | 10.5 |
| DS26782 | 64 | 56 | 38 | – | 13 | 18 | 19 | 25 | 22 | 7 | – | – | – | 40 | 8 | 12.5 |
| DS26783, DS26784 | 88 | 60 | 38 | 11 | 13 | 20 | 20 | 25 | 20 | 9 | 35 | 12.5 | 94 | 44 | 8 | 12.5 |
All high performance filters contain capacitors which will store charge even after the power has been removed from the filter. As an added precaution, after removing the power, filter terminals should always be shorted to earth (filter case) and to each other, before touching. A good low impedance earth connection must be made to the filter.
