Control Line HEMP & IEMI Filter Range

Download

Please enter your email address below to download.

MPE HEMP Prot Control Line A

DESCRIPTION

Ranges of multi-line HEMP protection filters for control lines suitable for use in various HEMP protected installations. All lines are individually filtered and feature inductive input to offer both good continuous wave EMC performance and superior transient handling performance. All lines feature high-energy varistor transient suppressors at the input end. Two ac ranges of filters are offered rated at 250VAC and 120VAC meeting the pci requirements of MIL-STD -188-125-1 & -2 for high voltage control lines working at >90V. A third range rated at 28VDC, meets the pci requirements of MIL-STD -188-125-1 & -2 for low voltage control lines working at <90V

All MPE HEMP filters are tested using the test methods defined within the following standards and meet or exceed the relevant performance and/or safety criteria defined within these standards:

Mil-Std-188-125
Mil-F-15733
Mil-Std-220C
CISPR17:2011/BS EN 55017:2011
UL1283
EN60950/IEC60950
UFGS 13.49.20.01
USACE 13.27.54.01



FEATURES

  • Ranges for high and low voltage control lines (250VAC, 120VAC, & 28VDC)
  • 1A current rating
  • Individually filtered lines
  • 2, 4, and 8 line versions

RATINGS & CHARACTERISTICS

28VDC Range 48VDC Range 120VAC Range     250VAC Range
Rated Voltage 28VDC 48VDC 120VAC 50/60Hz 250VAC 50/60Hz
Rated Current 1A to 5A 1A to 5A 1A to 5A 1A to 5A
Test Voltage (each line-case)* 300VDC 300VDC 2250VDC 2250VDC
Insulation Resistance* >100MΩ >100MΩ >100MΩ >100MΩ
Discharge Resistors (each line-case) 560kΩ 560kΩ 560kΩ 560kΩ
Discharge Time to Below 34V N/A N/A <10s <10s
Varistor Voltage Rating 38VDC 65VDC 150VAC 275VAC
Varistor Peak Surge Current 2kA (8/20µs) 6.5kA (8/20µs) 8kA (8/20µs) 8kA (8/20µs)

* test voltage and insulation resistance prior to fitting transient suppressors and discharge resistors

Maximum Volt Drop at Rated Current
See tables
Operating Temperature Range
-40ºC to +85ºC
Full Load Temperature Range
-40ºC to +50ºC
Full Load Heat Dissipation
See tables
Maximum Temperature Rise on Full Load
25 ºC

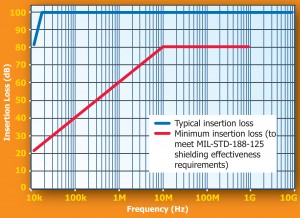

INSERTION LOSS PERFORMANCE

Insertion loss In 50Ω system
Frequency 10kHz 100kHz 1MHz 10MHz 100MHz 1GHz
Min. Insertion loss (Mil Std-188-125 requirement for shield effectiveness) 20dB 40dB 60dB 80dB 80dB 80dB
Typical Insertion Loss (All Ranges) 80dB 100dB 100dB 100dB 100dB 100dB
Typical 100dB Insertion Loss (no load) 4kHz to >1GHz
Typical 100dB Insertion Loss (full load) 100dB 18kHz to 1GHz

TRANSIENT SUPPRESSION PERFORMANCE

MIL STD 188-125-1 acceptance test, E1 short pulse current injection, wave shape 20/500ns
Input pulse amplitude 250A 500A 1000A 1800A 2500A
AC Ranges
MIL-STD-188-125 residual requirement (120VAC Range & 250VAC Range) <1A <1A <1A <1A <1A
Typical filter residual let-through (120VAC Range) <0.4A <0.4A <0.4A <0.4A <0.4A
Typical filter residual let-through (250VAC Range) <0.4A <0.4A <0.4A <0.4A <0.4A
DC Ranges
MIL-STD-188-125 residual requirement (28VDC Range & 48VDC Range) <100mA <100mA <100mA <100mA <100mA
Typical filter residual let-through (28V Range) <50mA <50mA <50mA <50mA <50mA
Typical filter residual let-through (48V Range) <80mA <80mA <80mA <80mA <80mA

PRODUCT RANGE (28VDC RANGE)

Part Number Current Rating (A) @50ºC No of Lines DC Volt Drop per line (V) Full Load Heat Dissipation per line (W) Major Dimensions
Length Width Depth Weight (kg)
DS33590 1 2 2.7 2.7 410 90 45 2.5
DS33591 1 4 2.7 2.7 410 175 45 5
DS33592 1 8 2.7 2.7 410 340 45 10
DS33593 2 2 1.3 2.6 410 90 45 2.5
DS33594 2 4 1.3 2.6 410 175 45 5
DS33595 2 8 1.3 2.6 410 340 45 10
DS33596 5 2 0.8 5 410 90 45 2.5
DS33597 5 4 0.8 5 410 175 45 5
DS33598 5 8 0.8 5 410 340 45 10

PRODUCT RANGE (48VDC RANGE)

Part Number Current Rating (A) @50ºC No of Lines DC Volt Drop per line (V) Full Load Heat Dissipation per line (W) Major Dimensions
Length Width Depth Weight (kg)
DS33800 1 2 2.7 2.7 410 90 45 2.5
DS33801 1 4 2.7 2.7 410 175 45 5
DS33802 1 8 2.7 2.7 410 340 45 10
DS33803 2 2 1.3 2.6 410 90 45 2.5
DS33804 2 4 1.3 2.6 410 175 45 5
DS33805 2 8 1.3 2.6 410 340 45 10
DS33806 5 2 0.8 5 410 90 45 2.5
DS33807 5 4 0.8 5 410 175 45 5
DS33808 5 8 0.8 5 410 340 45 10

PRODUCT RANGE (120VAC RANGE)

Part Number Current Rating (A) @50ºC No of Lines DC Volt Drop per line (V) Full Load Heat Dissipation per line (W) Major Dimensions
Length Width Depth Weight (kg)
DS33690 1 2 2.7 2.7 410 90 45 2.5
DS33691 1 4 2.7 2.7 410 175 45 5
DS33692 1 8 2.7 2.7 410 340 45 10
DS33693 2 2 1.3 2.6 410 90 45 2.5
DS33694 2 4 1.3 2.6 410 175 45 5
DS33695 2 8 1.3 2.6 410 340 45 10
DS33696 5 2 0.8 5 410 90 45 2.5
DS33697 5 4 0.8 5 410 175 45 5
DS33698 5 8 0.8 5 410 340 45 10

PRODUCT RANGE (250VAC RANGE)

Part Number Current Rating (A) @50ºC No of Lines DC Volt Drop per line (V) Full Load Heat Dissipation per line (W) Major Dimensions
Length Width Depth Weight (kg)
DS33670 1 2 2.7 2.7 410 90 45 2.5
DS33671 1 4 2.7 2.7 410 175 45 5
DS33672 1 8 2.7 2.7 410 340 45 10
DS33673 2 2 1.3 2.6 410 90 45 2.5
DS33674 2 4 1.3 2.6 410 175 45 5
DS33675 2 8 1.3 2.6 410 340 45 10
DS33676 5 2 0.8 5 410 90 45 2.5
DS33677 5 4 0.8 5 410 175 45 5
DS33678 5 8 0.8 5 410 340 45 10

DIMENSIONS & MECHANICAL DETAILS

No Of Lines Dimensions (mm)
A B C D
2 410 46 22 45
4 410 100 37.5 87.5
8 410 250 45 170

Dimensions in mm

Case Material
Electroplated steel
Finish
Paint (except mating areas)
Terminals
M3 screw terminals
